🎬 Product Overview

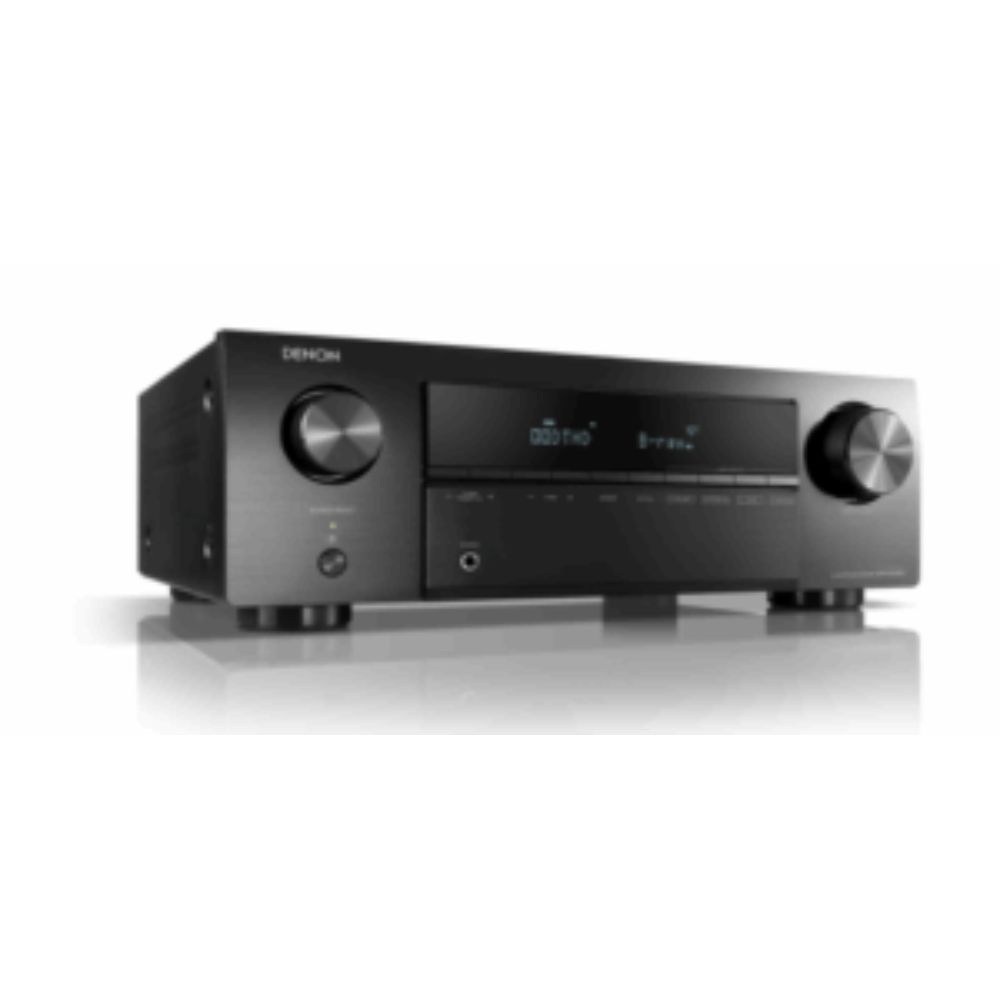

- Powerful 5.2 Channel AV Surround Receiver delivering immersive home theatre sound
- Supports 4K/60Hz pass-through for ultra-clear video performance
- Delivers 130W per channel (6Ω, 1% THD, 1 channel driven) for strong and dynamic audio output
- Ideal for compact to mid-range home theatre setups
🌟 Key Features
- 5-channel amplification (Front L/R, Center, Surround L/R)
- Built-in Bluetooth connectivity for wireless music streaming
- Supports Dolby TrueHD and Dolby HD for high-quality cinematic audio
- Eco Mode for reduced power consumption
- Auto Setup feature for easy and quick calibration
- Compatible with Bluetooth Remote App control
🔊 Audio Performance
- Power output:
- 130W per channel (6Ω, 1kHz, THD 1%, 1ch driven)
- 90W per channel (6Ω, 1kHz, THD 0.7%, 2ch driven)
- 70W per channel (8Ω, 20Hz–20kHz, THD 0.08%, 2ch driven)
- Frequency response: 10Hz – 100kHz (+1, -3 dB, DIRECT mode)
- Signal-to-noise ratio: 98 dB (IHF-A weighted, DIRECT mode)
- Speaker impedance support: 6 – 16 ohms
📡 Connectivity & Ports
- HDMI inputs: 5× HDMI IN
- HDMI output: 1× Monitor OUT
- Composite video: 2 inputs / 1 output
- Digital optical inputs: 2
- Analog audio inputs: 2
- Subwoofer pre-out: 0.1 channel output
- Headphone output: 1× Phones jack
- FM & AM tuner antenna support
⚙️ Power & Efficiency
- Power consumption: 330W
- Standby power: 0.1W (CEC standby 0.5W)
- Eco mode consumption: 30W (ECO ON), 45W (ECO OFF)
- Power supply: AC 230V, 50Hz
📏 Design & Build
- Dimensions: 434 × 151 × 319 mm
- Weight: 7.5 kg
- Compact and solid build for home theatre racks
🎯 Ideal For
- 5.1 / 5.2 channel home theatre setups
- Entry to mid-level cinema systems
- Gaming and movie entertainment
- Users looking for compact AV receiver solutions
⭐ Key Benefits
- Powerful 130W per channel cinematic audio performance
- Easy setup with Auto Calibration system
- Wireless streaming via Bluetooth support
- 4K video pass-through for modern content playback
- Energy-efficient operation with Eco Mode
- Perfect match for speaker systems like Polk TL 1600
