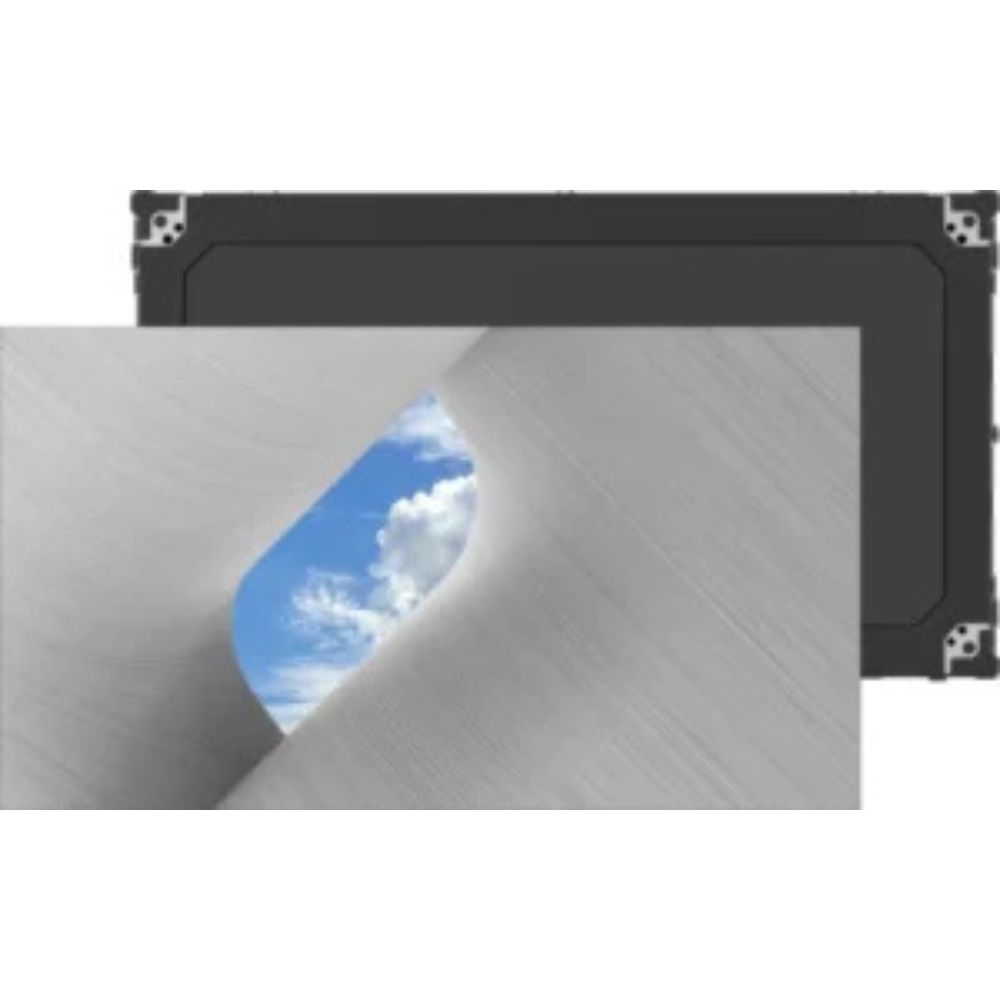

Led DisplayLDC027G-071C All-in-One Mini LED Display
- Premium All-in-One Mini LED display with ultra-fine 0.7mm pixel pitch for stunning visual clarity
- Advanced COB technology with 10,000:1 contrast ratio for deep blacks and vibrant images
- Modular LDC027G-071C system enables flexible video wall shapes and sizes
- Ultra-slim 32.9mm design with compact 1U rack-mount control box for easy integration
- IP54 and IK06 protection ensures durability against dust, moisture, and impact
- Energy-efficient architecture reduces power consumption by up to 25% for sustainable operation
- Centralized LAN control system for simple and efficient management
- Supports up to 4K resolution with long 100,000-hour LED lifespan
🧩 Key Features
- Mini LED with ultra-fine 0.7mm pixel pitch and 10,000:1 contrast ratio for exceptional visual clarity
- Customizable screen shapes and sizes with All-in-One design for hassle-free installation
- Reliable performance with COB technology and IP54-rated, IK06-certified protection against dust, moisture, and impact
- Compact 1U rack-mount control box and discreet power box simplify integration and reduce cabling
- Energy-efficient common cathode design with smart ICs reduces power consumption by up to 25%
- Centralized and efficient system management via LAN control for smooth operation
- Flexible LED cabinet system (LDC027G-071C) enables creation of high-impact video walls in multiple shapes and sizes
- Ultra-slim 32.9mm design with under 10 cm installation depth and 99% screen-to-body ratio
- Compatible with Novastar control systems for seamless AV integration
- Ideal for premium indoor environments like lobbies, malls, and transport hubs
⭐ Key Benefits
- Ultra-high clarity with 0.7mm pixel pitch and 10,000:1 contrast ratio
- Hassle-free All-in-One installation with reduced setup complexity
- Strong durability with COB structure and IP54 + IK06 protection
- Lower power consumption by up to 25% for energy efficiency
- Clean and professional installation with minimal cabling
- Flexible design for custom LED video wall configurations
- Centralized LAN control for easy monitoring and management
- Long-lasting performance with up to 100,000 hours LED lifespan
📺 Display Specifications
- Screen Size: 27″
- Panel Technology: Direct View LED (COB)
- LED Package Type: Flip Chip COB
- Pixel Pitch: 0.78 mm
- Brightness: Up to 600 nits (100 levels adjustable)
- Contrast Ratio: 10000:1 (typical)
- Color Temperature: 3000K – 10000K
- Orientation: Landscape
- Viewing Angles: 170° (H/V)
- LED Lifetime: 100,000 hours (typical)
⚙️ System & Performance
- Resolution Support: VGA (640×480) to 4K (3840×2160 @ 60Hz)
- HDTV Compatibility: 480p, 576p, 720p, 1080p, 2160p
- Horizontal Frequency: 31K – 94KHz
- Vertical Scan Rate: 56 – 85Hz
🔌 Connectivity
📥 Input Ports
- HDMI: 3 (HDMI 2.0 / HDCP 2.2 x1, HDMI 1.3 / HDCP 1.4 x2)
- USB Type-A: 2 (USB 3.0 x1, USB 2.0 x1)
- RJ45 Input: 2 (control)
- Audio In (3.5mm): 1
📤 Output Ports
- HDMI Out: 1 (HDMI 1.3 / HDCP 1.4)
- Audio Out (3.5mm): 1
⚡ Power (USB Shared)
- USB Type-A Power Output:
- USB 3.0: 5V/0.9A ×1
- USB 2.0: 5V/0.5A ×1
