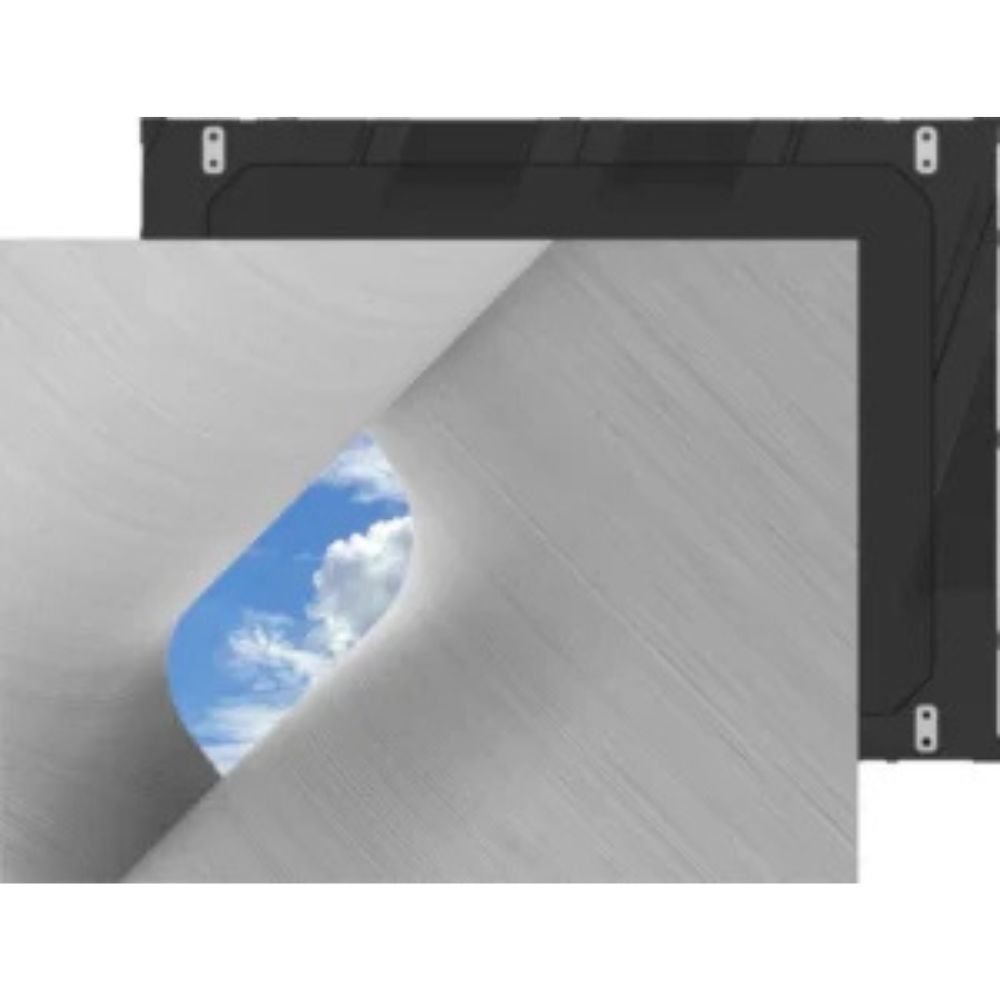

Led DisplayLDC031G-251 Customizable All-in-One LED Display
- Premium All-in-One fine-pitch LED display designed for flexible video wall configurations and hassle-free installation
- Modular LDC031G-251 system enables customizable shapes and sizes for impactful digital signage
- Ultra-slim 42.2mm design with compact 1U rack-mount control box for seamless integration
- GOB surface protection with IP54 and IK06 rating for durability against dust, moisture, and impact
- Energy-efficient architecture reduces power consumption by up to 40% for sustainable operation
- Centralized LAN control system for easy and efficient management
- Supports high-resolution visuals up to 4K with long 100,000-hour LED lifespan
🧩 Key Features
- Customizable screen shapes and sizes with All-in-One design for hassle-free installation
- Compact 1U rack-mount control box and discreet power box simplify integration and reduce cabling
- Reliable performance in any space with GOB surface treatment and IP54-rated, IK06-certified protection against dust, moisture, and impact
- Energy-efficient architecture with advanced driving ICs reduces power consumption by up to 40% for sustainable operation
- Centralized and efficient system management via LAN control for smooth and scalable operation
- Flexible LED cabinet system (LDC031G-251) enables creation of dynamic LED video walls in multiple shapes and sizes
- Ultra-slim 42.2mm design with under 10 cm installation depth and 99% screen-to-body ratio for a premium look
- Compatible with Novastar control systems for seamless AV integration
- Ideal for high-traffic commercial environments such as malls, airports, lobbies, and corporate spaces
- Long-lasting performance with up to 100,000 hours LED lifespan
⭐ Key Benefits
- Hassle-free All-in-One installation with minimal setup complexity
- Flexible design for creating custom LED video wall configurations
- Strong durability with IP54 dust/moisture resistance and IK06 impact protection
- Energy savings of up to 40% for lower operating costs
- Clean installation with compact control system and reduced cabling
- Centralized LAN control for easy monitoring and management
- High ROI with long lifespan up to 100,000 hours
- Reliable 24/7 performance for continuous commercial use
📺 Display Specifications
- Screen Size: 31.5″
- Panel Technology: Direct View LED
- LED Package Type: SMD 3-in-1 (GOB)
- Bonding Wire: Copper
- Pixel Pitch: 2.50 mm
- Brightness: Up to 600 nits (100 levels adjustable)
- Contrast Ratio: 6500:1 (typical)
- Color Temperature: 3000K – 10000K
- Orientation: Landscape
- Viewing Angles: 170° (H/V)
- LED Lifetime: 100,000 hours (typical)
⚙️ System & Performance
- Resolution Support: VGA (640×480) to 4K (3840×2160 @ 60Hz)
- HDTV Compatibility: 480p, 576p, 720p, 1080p, 2160p
- Horizontal Frequency: 31K – 94KHz
- Vertical Scan Rate: 56 – 85Hz
🔌 Connectivity
📥 Input Ports
- HDMI: 3 (HDMI 2.0 / HDCP 2.2 x1, HDMI 1.3 / HDCP 1.4 x2)
- USB Type-A: 2 (USB 3.0 x1, USB 2.0 x1)
- RJ45 Input: 2 (control)
- Audio In (3.5mm): 1
📤 Output Ports
- HDMI Out: 1 (HDMI 1.3 / HDCP 1.4)
- Audio Out (3.5mm): 1
⚡ Power (USB Shared)
- USB Type-A Power Output:
- USB 3.0: 5V/0.9A ×1
- USB 2.0: 5V/0.5A ×1
