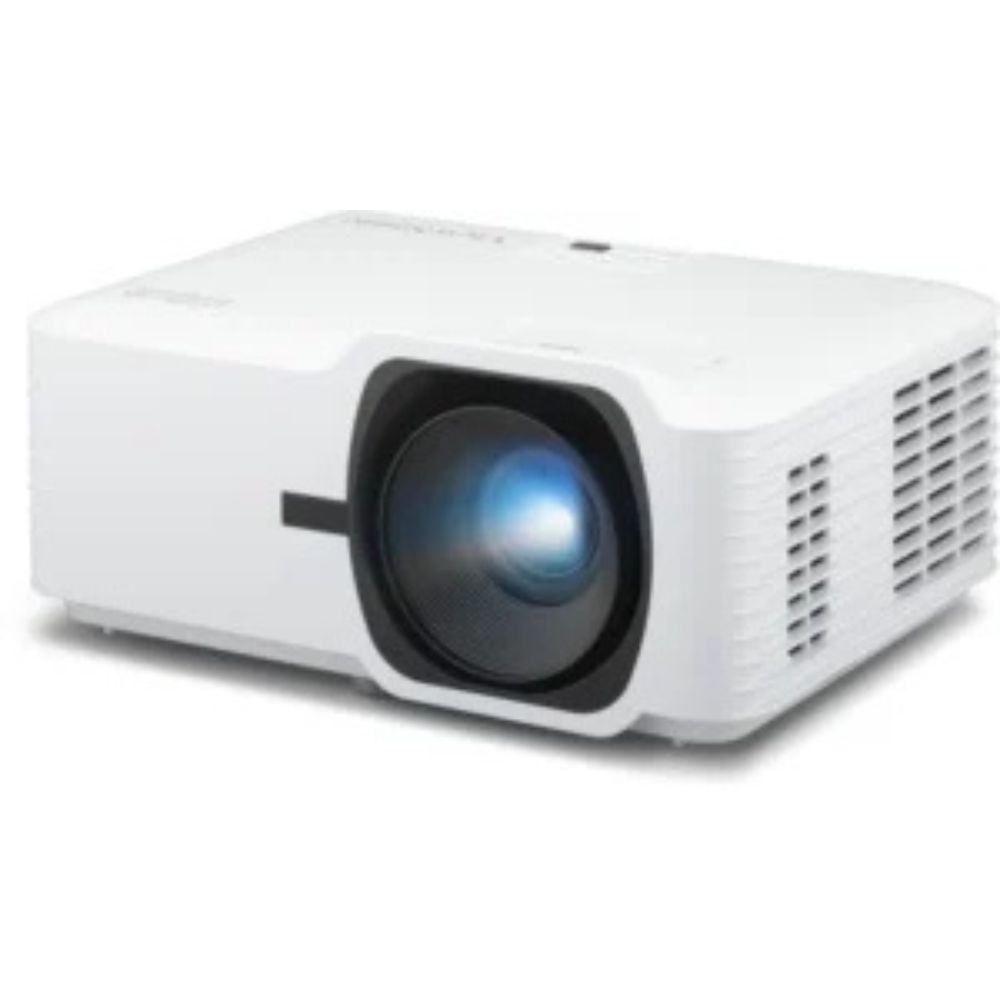

LS711W WXGA Short Throw Laser Installation Projector

✅ Product Overview

• LS711W is a 4,200 ANSI Lumens WXGA short throw laser installation projector designed for commercial and educational spaces
• Delivers bright and vivid visuals up to 300” screen size with WXGA (1280 × 800) resolution
• Powered by 3rd generation Laser Phosphor technology with up to 30,000 hours lifespan
• Compact, lightweight design reduces installation and transportation costs
• Ideal for classrooms, conference rooms, museums, galleries, and immersive display setups
• Supports eco-friendly, lamp-free operation with long-term reliability

🌟 Key Features

• 4,200 ANSI Lumens brightness for clear visuals in various lighting conditions
• 3rd generation laser phosphor light source with up to 30,000 hours lifespan
• Short throw ratio of 0.52 for large images from very short distance
• 100” screen projection from just 1.12 m with no shadows
• High contrast ratio of 3,000,000:1 for deep blacks and rich image depth
• 360° projection and portrait mode support for flexible installations
• H/V keystone correction with 4-corner adjustment for easy setup
• Edge-blending ready for seamless multi-projector displays
• Low noise operation: 30dB (Normal) / 24dB (Eco mode)

🖼️ Display & Projection Performance

• Projection System: 0.65” WXGA
• Native Resolution: 1280 × 800
• Brightness: 4,200 ANSI Lumens (5,000 Center Lumens)
• Contrast Ratio: 3,000,000:1
• Display Colors: 1.07 Billion Colors
• Image Size: 35” – 300”
• Throw Ratio: 0.521 (Short Throw)
• Throw Distance: 0.39 – 3.37 m (100” @ 1.12 m)
• Lens: F=2.8, f=7.51 mm
• Digital Zoom: 0.8x – 2.0x
• Keystone Correction: ±15° Horizontal & Vertical
• Input Lag: 49.5 ms
• Projection Offset: 125% ±10%

💡 Light Source & Performance

• 3rd Gen Laser Phosphor technology
• Lamp-free design for maintenance-free operation
• Up to 20,000 hours (Normal mode)
• Up to 30,000 hours (Eco mode)
• Stable brightness and consistent color performance over time
• Low noise operation for quiet environments

🔌 Connectivity & Inputs/Outputs

• 2× HDMI 1.4 (HDCP 1.4 support)
• 1× Audio Out (3.5mm)
• 1× USB Type-A (5V/1.5A power output)
• Built-in 15W speaker for clear audio output

🎯 Ideal For

• Classrooms and educational institutions
• Corporate meeting rooms and conference spaces
• Museums, galleries, and exhibitions
• Retail displays and interactive installations
• Digital signage and immersive environments

⭐ Key Benefits

• Bright 4,200 ANSI Lumens output for reliable visibility
• Ultra-short throw projection for shadow-free presentations
• Long-life laser technology up to 30,000 hours
• Flexible installation with 360° projection and portrait mode
• Easy setup with keystone correction and short throw design
• Compact and lightweight for lower installation cost
• High contrast visuals for sharp and professional image quality
