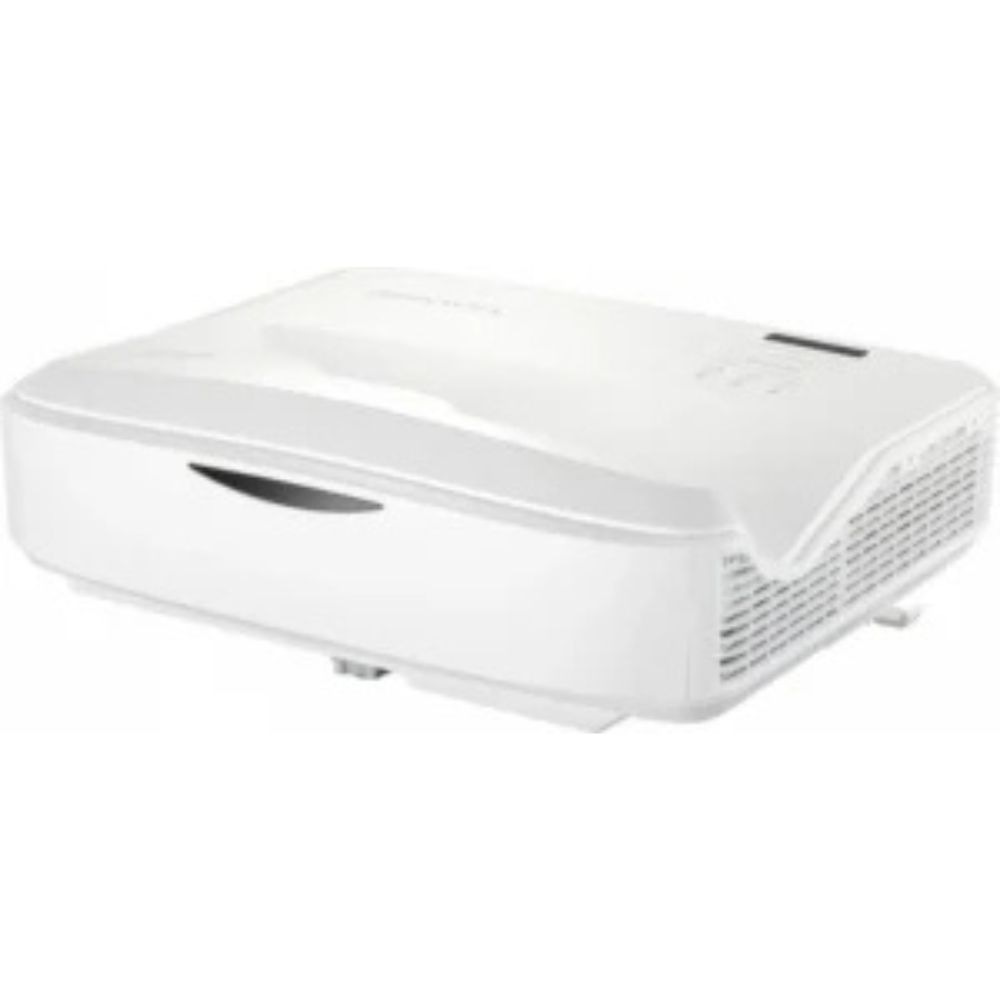

LS832WU Ultra Short Throw Laser Projector

✅ Product Overview

• LS832WU is a 5,000 ANSI Lumens WUXGA ultra short throw laser projector designed for commercial and educational applications
• Delivers bright, clear visuals up to 170” screen size with WUXGA (1920 × 1200) resolution
• 2nd generation Laser Phosphor technology with up to 30,000 hours lifespan for long-term reliability
• Ultra short throw ratio (0.25) enables large projection from just 28 cm distance (100” image)
• Ideal for museums, retail stores, shopping malls, airports, and digital signage installations
• Lamp-free design ensures low maintenance and cost-effective operation

🌟 Key Features

• 0.25 ultra short throw projection for space-saving installation
• 5,000 ANSI Lumens brightness for strong visibility in any environment
• Up to 170” large screen display with lower cost-per-inch
• 2nd generation Laser Phosphor technology with up to 30,000-hour lifespan
• High contrast ratio of 3,000,000:1 for sharp and detailed image quality
• H/V keystone correction with 4-corner adjustment for flexible setup
• Fixed lens with ultra short throw design for easy placement
• Comprehensive LAN control for centralized device management
• Compatible with Crestron, AMX, Extron, and PJ Link systems

🖼️ Display & Projection Performance

• Projection System: 0.67” WUXGA
• Native Resolution: 1920 × 1200
• Brightness: 5,000 ANSI Lumens
• Contrast Ratio: 3,000,000:1
• Display Colors: 1.07 Billion Colors
• Image Size: 80” – 170”
• Throw Ratio: 0.253 (Ultra Short Throw)
• Throw Distance: 0.17 – 0.66 m (100” @ 0.28 m)
• Projection Offset: 133% ±3%
• Digital Zoom: 0.8x – 2.0x
• Keystone Correction: ±10° (H & V)
• Input Lag: 33.2 ms

💡 Light Source & Performance

• 2nd Gen Laser Phosphor light source
• Up to 20,000 hours (Normal mode)
• Up to 30,000 hours (Eco mode)
• Stable brightness and consistent color performance
• Low noise operation: 34dB (Normal) / 28dB (Eco mode)
• Maintenance-free lamp-free design reduces running cost

🔌 Connectivity & Inputs/Outputs

• 2× HDMI 2.0 (HDCP 1.4 / 2.2 support)
• 1× Computer in (shared with component)
• 1× Audio in (3.5mm)
• 1× Microphone in
• 1× Monitor out
• 1× Audio out (3.5mm)
• 1× USB Type-A (5V/1.5A power output)
• Built-in 10W speaker (1×10W)

🎯 Ideal For

• Museums and exhibition spaces
• Retail stores and storefront displays
• Shopping malls and commercial signage
• Airports and public information displays
• Interactive digital installations and branding zones

⭐ Key Benefits

• Ultra short throw 0.25 design for shadow-free large projections
• Bright 5,000 ANSI Lumens for clear visibility in public spaces
• Large screen up to 170” for impactful visual communication
• Long-life laser technology up to 30,000 hours operation
• Flexible installation with keystone and corner adjustment
• Centralized LAN control for multi-device management
• Cost-effective, maintenance-free commercial display solution
