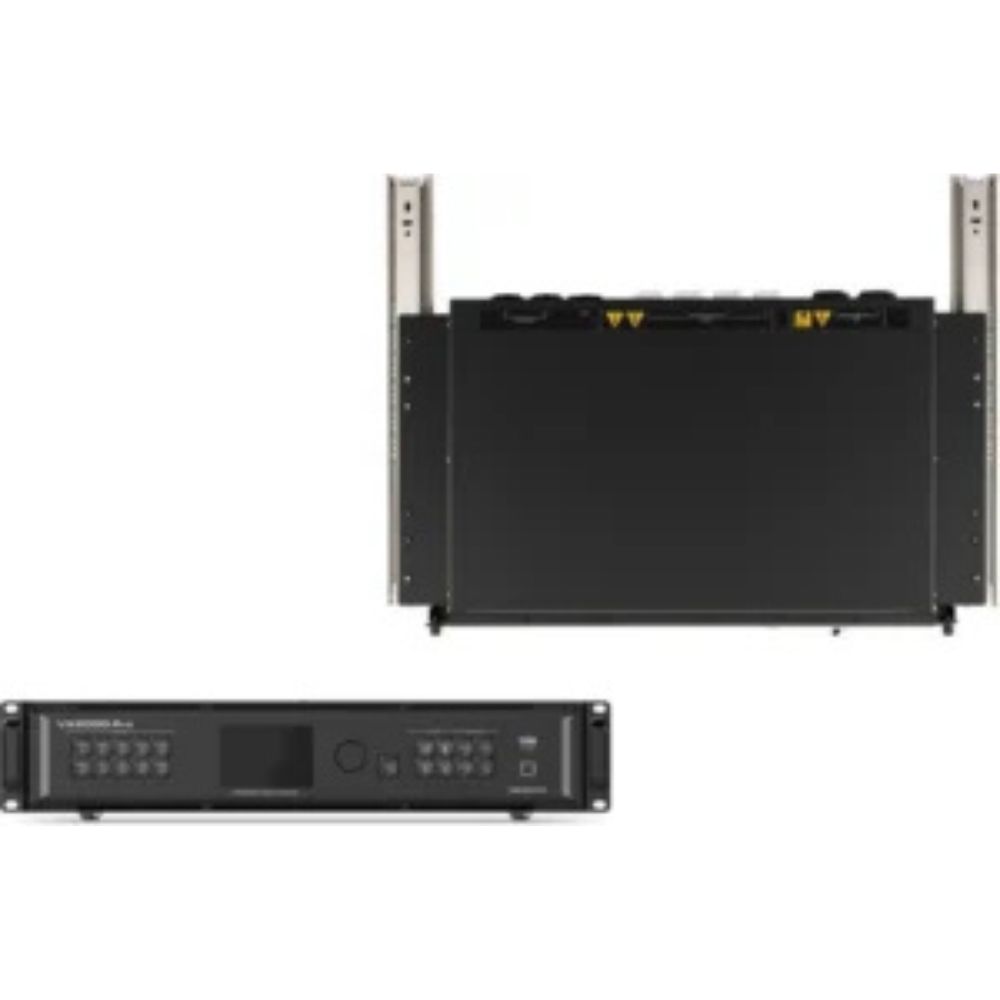

LD-SCB-024 All-in-One System Control Box

🧩 Key Features

• Integrated All-in-One design simplifies setup and ensures smooth operation
• 2U rack-mount form factor fits standard server cabinets for professional AV integration
• Discreet power box installation behind the screen enables clean, clutter-free setups
• Integrated power on/off control supports energy-efficient and sustainable operation
• Centralized control via LAN and RS-232 for streamlined system management
• Designed for ViewSonic LDC Series All-in-One LED display systems
• High-performance VX2000 Pro processor ensures stable and efficient operation
• Supports large-scale LED configurations with up to 13,000,000 pixel capacity
• Multiple input/output interfaces for flexible AV integration
• Ideal for command centers, control rooms, and large-scale digital signage environments

⭐ Key Benefits

• Clean installation with hidden power box and reduced cabling
• Easy rack integration with standard 2U design
• Energy-efficient operation with integrated power control
• Centralized LAN + RS-232 management for smooth control
• High-performance processing for large LED display systems
• Scalable solution supporting high-resolution LED video walls
• Flexible connectivity for professional AV environments
• Reliable 24/7 performance for commercial installations

⚙️ System Specifications

• Processor: VX2000 Pro
• Power Consumption: 82W
• Max Pixel Capacity: 13,000,000 pixels
• Max Resolution Support: 16,384 × 8,192
• Embedded Control Architecture: Professional-grade LED processing system

📏 Physical Specifications

• Rack Size: 2U rack-mount design
• Power Module Dimensions: 565 × 39 × 428 mm
• Control Box Dimensions: 482.6 × 94.6 × 493 mm
• Net Weight: 6 kg (Power Module), 7 kg (Control Box)
• Power Output Consumption: 13.2kW @ 220V / 6.6kW @ 110V

🔌 Connectivity

📥 Input Ports

• HDMI: 6 (HDMI 2.0 / HDCP 2.2 x4, HDMI 1.3 / HDCP 1.4 x2)
• USB Type-A: 2 (USB 3.0 x1, USB 2.0 x1)
• RJ45 (Internet/Control): 2
• DisplayPort (DP): 1 (DP 1.2)

📤 Output Ports

• HDMI: 1 (HDMI 1.3 / HDCP 1.4)
• Audio Out (3.5mm): 1

⚡ Power Output (USB)

• USB 3.0: 5V/0.9A ×1
• USB 2.0: 5V/0.5A ×1
