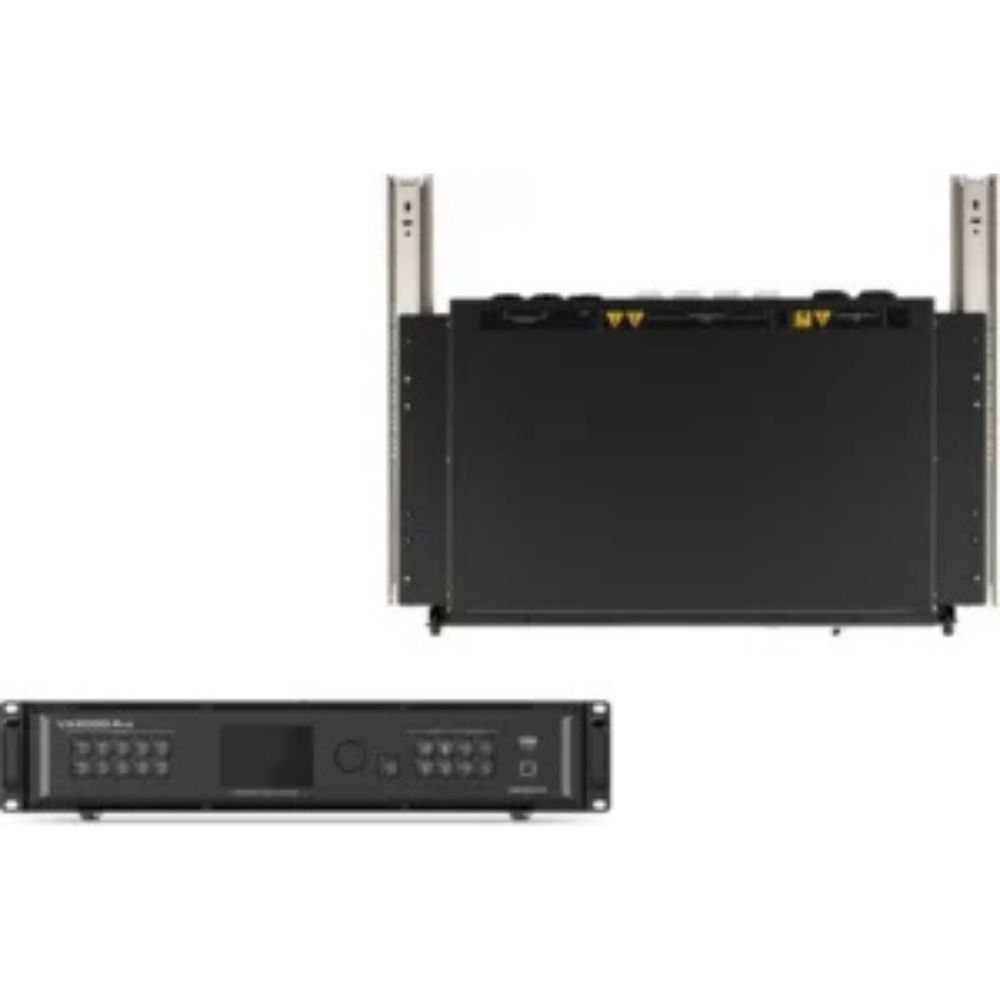

LED Display ControllersLD-SCB-025 All-in-One System Control Box
- Compact All-in-One 1U rack-mount control system for ViewSonic LDC Series LED displays
- Supports LED configurations up to 3.9 million pixels for scalable installations
- Integrated design with hidden power box ensures clean and clutter-free setup
- Centralized LAN and RS-232 control for efficient system management
- High-performance VX600 Pro processor for stable and reliable operation
- Energy-efficient power control with one-touch on/off functionality
- Multiple HDMI, USB, and network interfaces for flexible integration
- Ideal for control rooms, command centers, and digital signage environments
- Built for professional 24/7 commercial-grade performance
🧩 Key Features
- Integrated All-in-One design simplifies setup and ensures smooth, hassle-free operation
- 1U rack-mount form factor fits standard server cabinets for compact and professional AV integration
- Discreet power box installation behind the screen enables clean, clutter-free configurations
- Integrated power on/off control supports energy-efficient and sustainable operation
- Centralized control via LAN and RS-232 for streamlined system management
- Designed for ViewSonic LDC Series Customizable All-in-One LED Displays
- High-performance VX600 Pro processor ensures stable and efficient operation
- Supports LED configurations up to 3,900,000 pixels for scalable display setups
- Multiple input/output interfaces for flexible AV system integration
- Ideal for command centers, control rooms, and commercial digital signage applications
⭐ Key Benefits
- Clean installation with hidden power system and reduced cabling
- Compact 1U rack design for easy integration into server cabinets
- Energy-efficient operation with integrated power control
- Centralized LAN + RS-232 control for smooth system management
- High-performance processing for stable LED display operation
- Scalable solution supporting professional LED video wall setups
- Flexible connectivity for AV integration
- Reliable 24/7 performance for commercial environments
⚙️ System Specifications
- Processor: VX600 Pro
- Power Consumption: 41W
- Max Pixel Capacity: 3,900,000 pixels
- Max Resolution Support: 10,240 × 8,192
- Embedded Control Architecture: Professional LED processing system
📏 Physical Specifications
- Rack Size: 1U rack-mount design
- Power Module Dimensions: 565 × 39 × 428 mm
- Control Box Dimensions: 482.6 × 50.1 × 302.2 mm
- Net Weight: 6 kg (Power Module), 3.9 kg (Control Box)
- Power Output Consumption: 13.2kW @ 220V / 6.6kW @ 110V
🔌 Connectivity
📥 Input Ports
- HDMI: 3 (HDMI 2.0 / HDCP 2.2 x1, HDMI 1.3 / HDCP 1.4 x2)
- USB Type-A: 2 (USB 3.0 x1, USB 2.0 x1)
- RJ45 (Internet/Control): 2
📤 Output Ports
- HDMI: 1 (HDMI 1.3 / HDCP 1.4)
- Audio Out (3.5mm): 1
⚡ Power Output (USB)
- USB 3.0: 5V/0.9A ×1
- USB 2.0: 5V/0.5A ×1
