🧩 Key Features
- Customizable screen shapes and sizes with All-in-One design for hassle-free installation
- Compact 1U rack-mount control box and discreet power box simplify integration and reduce cabling
- Reliable performance in any space with GOB surface treatment and IP54-rated, IK06-certified protection against dust, moisture, and impact
- Energy-efficient architecture with advanced driving ICs reduces power consumption by up to 40% for sustainable operation
- Centralized and efficient system management via LAN control for smooth and scalable operation

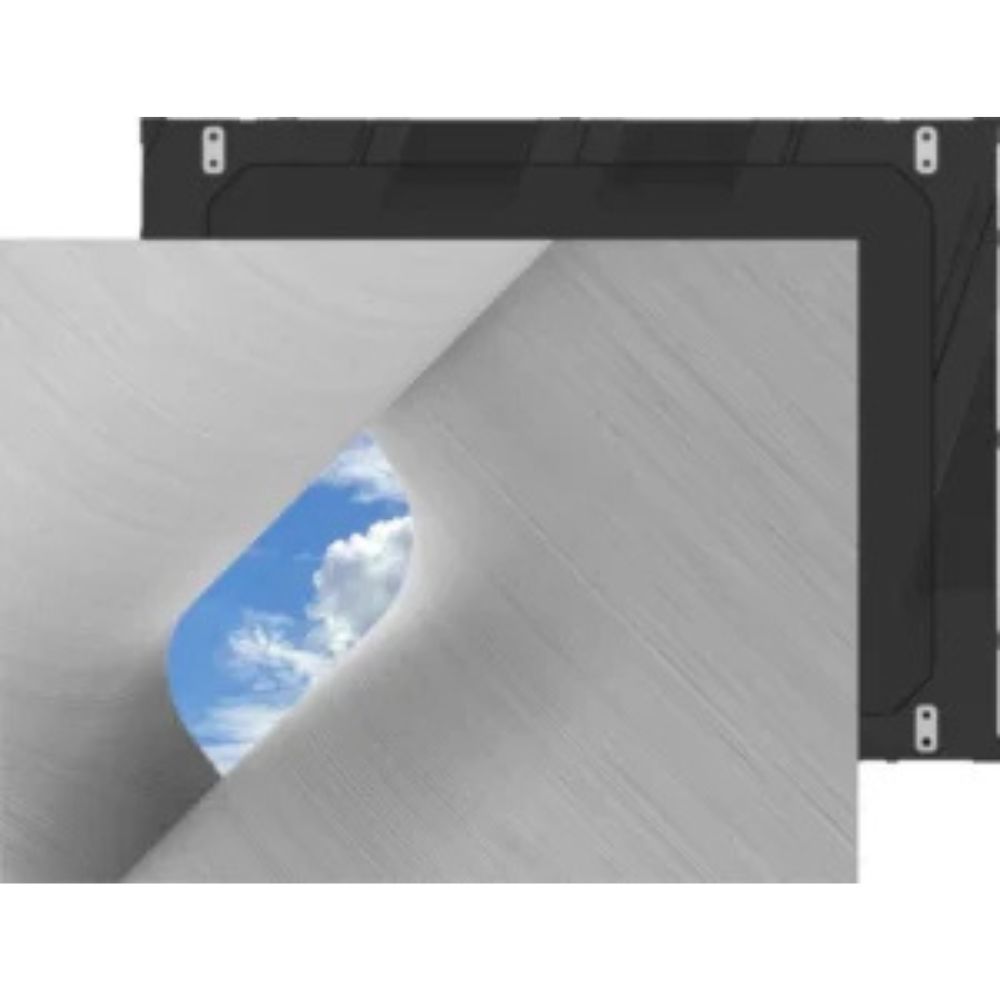

- Modular LED cabinet system (LDC031G-121) enables creation of high-impact LED walls in multiple shapes and sizes
- Advanced Glue-on-Board (GOB) technology seals LED modules with epoxy resin for enhanced durability and protection
- Ideal for high-traffic environments such as malls, airports, hotel lobbies, and corporate spaces
- Supports professional-grade digital signage with immersive visual performance
- Helps reduce total cost of ownership with lower energy consumption and long-term efficiency
⭐ Key Benefits
- Hassle-free All-in-One installation with minimal setup complexity
- Flexible design for creating custom LED video walls in different shapes and sizes
- Strong durability with IP54 dust/moisture resistance and IK06 impact protection
- Lower electricity usage with up to 40% energy savings
- Reduced maintenance and long-term operational cost benefits
- Clean and professional installation with compact control and power systems
- Ideal for premium commercial and public display applications
- High ROI with long-lasting 100,000-hour LED lifespan
📺 Display Specifications
- Screen Size: 31.5″
- Panel Technology: Direct View LED
- LED Package Type: SMD 3-in-1 (GOB)
- Bonding Wire: Copper
- Pixel Pitch: 1.25 mm
- Brightness: Up to 600 nits (100 levels adjustable)
- Contrast Ratio: 6500:1 (typical)
- Color Temperature: 3000K – 10000K
- Orientation: Landscape
- Viewing Angles: 170° (H/V)
- LED Lifetime: 100,000 hours (typical)
⚙️ System & Performance
- Resolution Support: VGA (640×480) to 4K (3840×2160 @ 60Hz)
- HDTV Compatibility: 480p, 576p, 720p, 1080p, 2160p
- Horizontal Frequency: 31K – 94KHz
- Vertical Scan Rate: 56 – 85Hz
🔌 Connectivity
📥 Input Ports
- HDMI: 3 (HDMI 2.0 / HDCP 2.2 x1, HDMI 1.3 / HDCP 1.4 x2)
- USB Type-A: 2 (USB 3.0 x1, USB 2.0 x1)
- RJ45 Input: 2 (control)
- Audio In (3.5mm): 1
📤 Output Ports
- HDMI Out: 1 (HDMI 1.3 / HDCP 1.4)
- Audio Out (3.5mm): 1
⚡ Power (USB Shared)
- USB Type-A Power Output:
- USB 3.0: 5V/0.9A ×1
- USB 2.0: 5V/0.5A ×1
