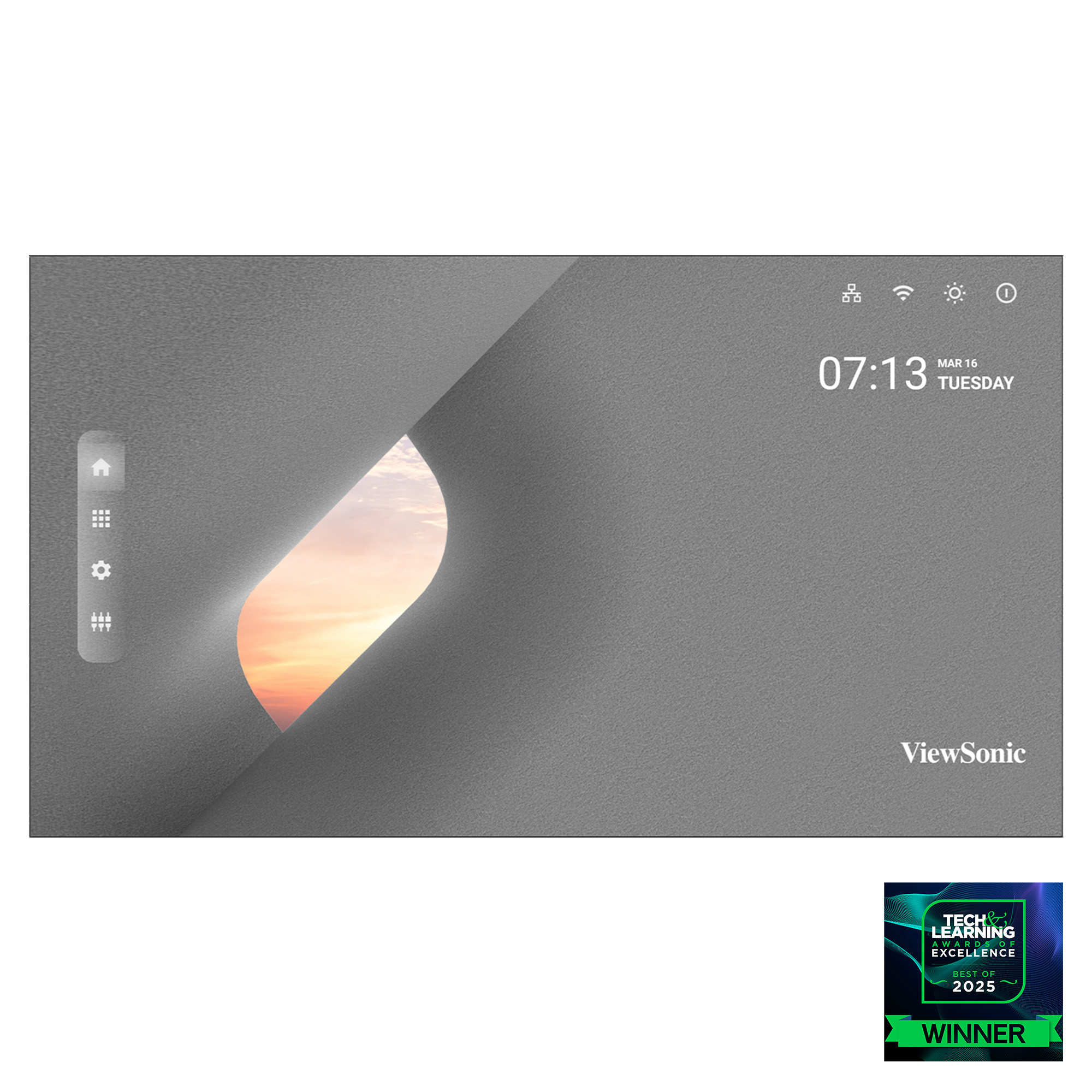

LDM136-151 All-in-One LED Display

🎯 Product Overview

• ViewSonic LDM136-151 is a premium 136” All-in-One Direct View LED display designed for large venues and professional environments
• Delivers stunning Full HD (1920 × 1080) visuals with 600 nits brightness for clear visibility even in bright spaces
• Ideal for auditoriums, lecture halls, corporate boardrooms, conference rooms, and lobbies
• Sleek design with 99% screen-to-body ratio for a seamless and modern appearance
• Built with GOB (Glue-on-Board) technology for enhanced durability and protection
• Designed for 24/7 operation, making it perfect for digital signage and continuous use

🌟 Key Features

• Massive 136” display for immersive large-scale viewing
• Full HD resolution for sharp and detailed visuals
• High brightness of 600 nits for excellent visibility in any lighting condition
• 99% screen-to-body ratio for a clean, borderless look
• GOB surface treatment with IP54 rating for protection against dust, moisture, and minor impacts
• Detachable control box for easy access and flexible installation
• Supports 24/7 continuous operation for commercial use
• Wide 170° viewing angles for consistent image quality from all directions
• High refresh rate of 3840Hz for smooth and flicker-free visuals

🖥️ Display & Performance

• Display Type: Direct View LED
• Screen Size: 136” (135.4” viewable area)
• Resolution: 1920 × 1080 (Full HD)
• Aspect Ratio: 16:9
• Brightness: 600 nits (adjustable across 100 levels)
• Contrast Ratio: 6,500:1
• Refresh Rate: 3,840Hz
• LED Pitch Size: 1.56 mm
• LED Grayscale: 13-bit
• Viewing Angles: 170° horizontal / 170° vertical
• Backlight Life: Up to 100,000 hours
• Operation Rating: 24/7

🔊 Audio & System Features

• Built-in speakers: 30W × 2 for powerful audio output
• On-screen display controls for power, brightness, volume, and input selection
• Remote control included for easy operation
• Supports Wi-Fi connectivity (2.4G / 5G)

🔌 Connectivity & Ports

• 4× HDMI 2.0 (HDCP 2.2)
• 1× HDMI Out
• 2× Audio Out (3.5mm)
• 1× USB 3.0
• 1× USB 2.0
• 1× USB Type-C
• 3× Ethernet LAN (RJ45)
• 1× RS232
• 1× IR In

⚙️ Power & Physical Specifications

• Power Consumption: 609W (Typical) / 1740W (Max)
• Standby: <0.5W (Sleep)
• Voltage: 100–120V ±10%, 50/60Hz
• Dimensions: 3012 × 1833.5 × 31 mm
• Weight: 162 kg (Net)
• Operating Temperature: 0°C to 40°C

📦 Package Contents

• Power Cord
• LAN Cable (CAT 5A)
• IR Extender
• Remote Control
• Quick Start Guide
• Wall Mount
• Mounting Kits (LD-MK-003, LD-MK-004)

🎯 Ideal For

• Auditoriums and lecture halls
• Corporate boardrooms and conference rooms
• Lobbies and reception areas
• Digital signage and advertising displays
• Educational institutions and training centers

⭐ Key Benefits

• Massive 136” display for high-impact visual communication
• Bright and clear visuals even in well-lit environments
• Durable GOB technology with IP54 protection
• Seamless design with ultra-high screen-to-body ratio
• Reliable 24/7 performance for continuous operation
• Flexible connectivity for professional AV setups
• Long lifespan up to 100,000 hours for reduced maintenance costs
