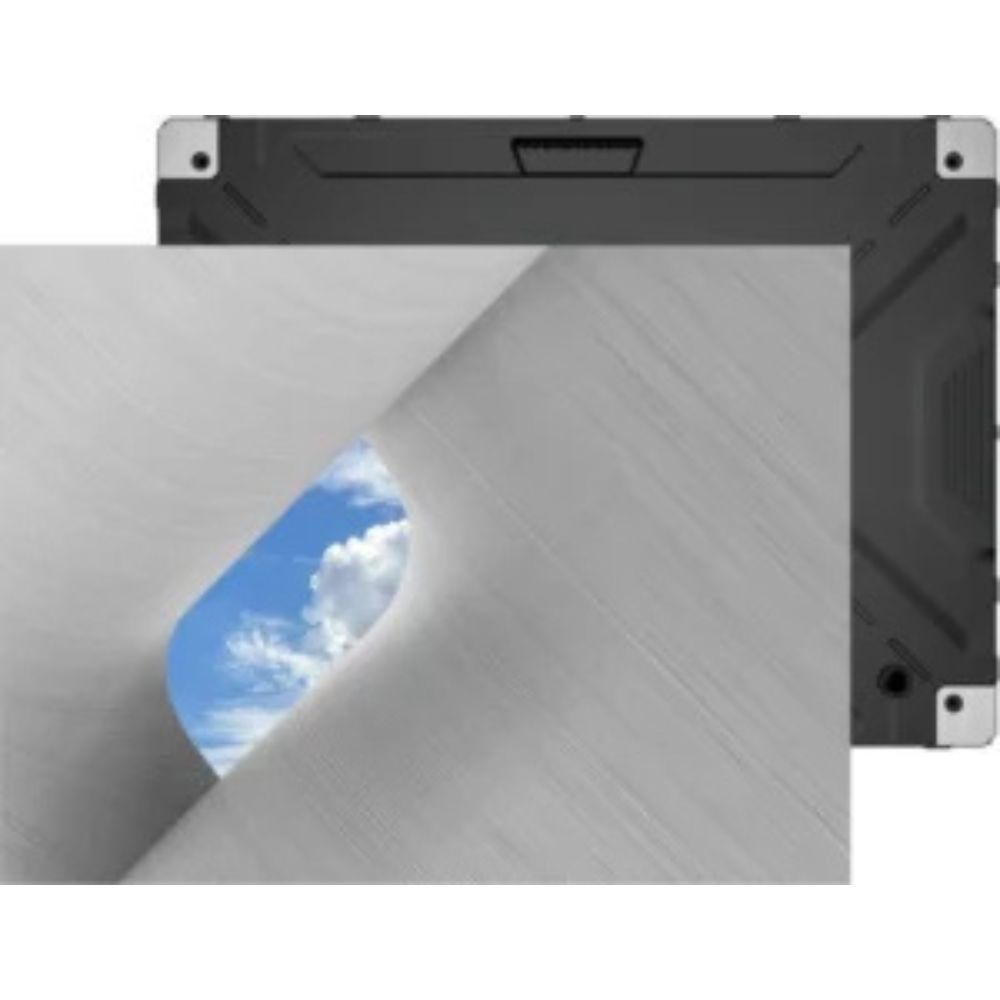

LDC027G-091C All-in-One Mini LED Display

🧩 Key Features

• Mini LED with ultra-fine 0.9mm pixel pitch and 10,000:1 contrast ratio for exceptional visual clarity
• Customizable screen shapes and sizes with All-in-One design for hassle-free installation
• Reliable performance with COB technology and IP54-rated, IK06-certified protection against dust, moisture, and impact
• Compact 1U rack-mount control box and discreet power box simplify integration and reduce cabling
• Energy-efficient common cathode design with smart ICs reduces power consumption for sustainable operation
• Centralized and efficient system management via LAN control for smooth and scalable operation
• Modular LDC027G-091C system enables creation of seamless, high-resolution LED video walls
• Ultra-slim design with high screen-to-body ratio for a nearly bezel-free viewing experience
• Ideal for premium environments such as boardrooms, command centers, broadcast studios, and luxury retail spaces
• Designed for scalable installations with flexible LED wall configurations

⭐ Key Benefits

• Ultra-sharp visuals with 0.9mm pixel pitch for close-viewing precision
• Seamless modular design for building large-scale customized LED walls
• Hassle-free All-in-One installation with reduced setup complexity
• Strong durability with COB technology and IP54 + IK06 protection
• Energy savings with low power consumption and efficient system design
• Clean installation with compact control and reduced cabling
• Centralized LAN control for easy monitoring and management
• Long-lasting performance with up to 100,000 hours LED lifespan

📺 Display Specifications

• Screen Size: 27″
• Panel Technology: Direct View LED (COB)
• LED Package Type: Flip Chip COB
• Pixel Pitch: 0.94 mm
• Brightness: Up to 600 nits (100 levels adjustable)
• Contrast Ratio: 10000:1 (typical)
• Color Temperature: 3000K – 10000K
• Orientation: Landscape
• Viewing Angles: 170° (H/V)
• LED Lifetime: 100,000 hours (typical)

⚙️ System & Performance

• Resolution Support: VGA (640×480) to 4K (3840×2160 @ 60Hz)
• HDTV Compatibility: 480p, 576p, 720p, 1080p, 2160p
• Horizontal Frequency: 31K – 94KHz
• Vertical Scan Rate: 56 – 85Hz

🔌 Connectivity

📥 Input Ports

• HDMI: 3 (HDMI 2.0 / HDCP 2.2 x1, HDMI 1.3 / HDCP 1.4 x2)
• USB Type-A: 2 (USB 3.0 x1, USB 2.0 x1)
• RJ45 Input: 2 (control)
• Audio In (3.5mm): 1

📤 Output Ports

• HDMI Out: 1 (HDMI 1.3 / HDCP 1.4)
• Audio Out (3.5mm): 1

⚡ Power (USB Shared)

• USB Type-A Power Output:
  • USB 3.0: 5V/0.9A ×1
  • USB 2.0: 5V/0.5A ×1
